CPVC Hot Water Pipe
CPVC for hot water and industrial process lines where uPVC would soften. Ivory colour, solvent-weld jointing, sizes from DN15.
Tell us the size and quantity — price, lead time and loading plan back in one working day
Dial in the pressure class first, then the diameter. If you are unsure, send the working pressure and we will recommend the SDR.
The only reason to pay more than uPVC
CPVC keeps its strength well above the point where uPVC softens. That is the whole case for it, and the reason the cement is different too.
| Service | Material | Note |
|---|---|---|
| Cold water, buried | uPVC or PE | Cheaper; CPVC not needed |
| Hot water up to 95 °C | CPVC | Domestic and process lines |

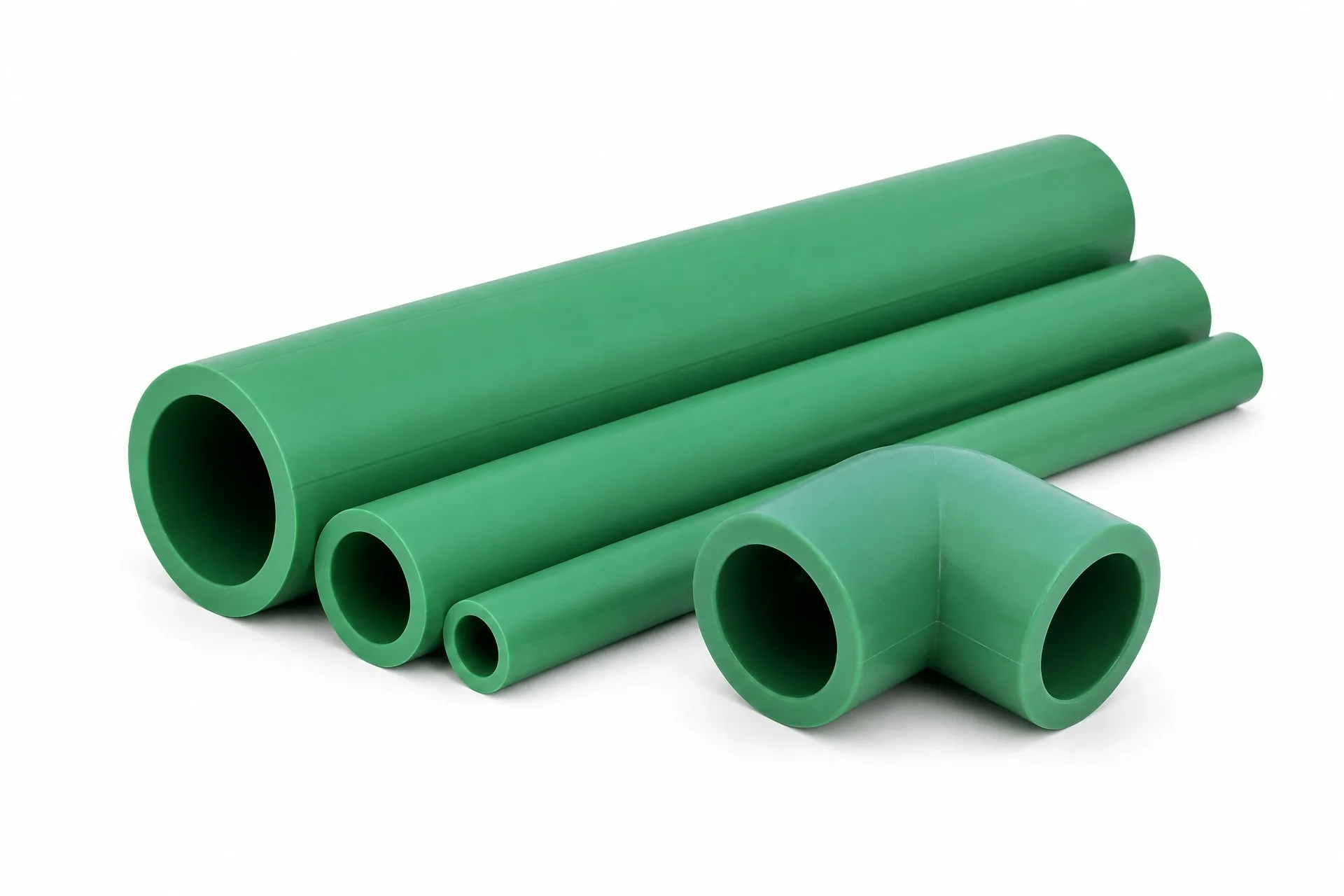

| Hot water, flexible route | PPR | Socket fusion instead of cement |
Pressure derating with temperature is published per standard; send the working temperature and we quote the class that holds at that temperature, not at 20 °C.
Two mistakes that ruin CPVC lines
- Using uPVC cement — it will not hold; CPVC needs its own solvent
- Quoting the PN at 20 °C for a 80 °C line — the allowable pressure drops sharply
Transitions
Threaded brass transitions connect CPVC to pumps, tanks and metal pipework. State the thread standard — BSP and NPT are both available.
Send the working temperature
Temperature first, pressure second — that is the order that decides the material.
Questions on this product
Can CPVC be used outdoors?
Only with UV protection — paint or a jacket. Direct sun degrades the surface.
Is CPVC the same as uPVC?
No. Different resin, different cement, higher temperature limit, higher price.
Do you supply CPVC fittings?
Yes — elbows, tees, couplings and threaded transitions, quoted with the pipe.
What is the MOQ?
Confirmed on quotation.]
